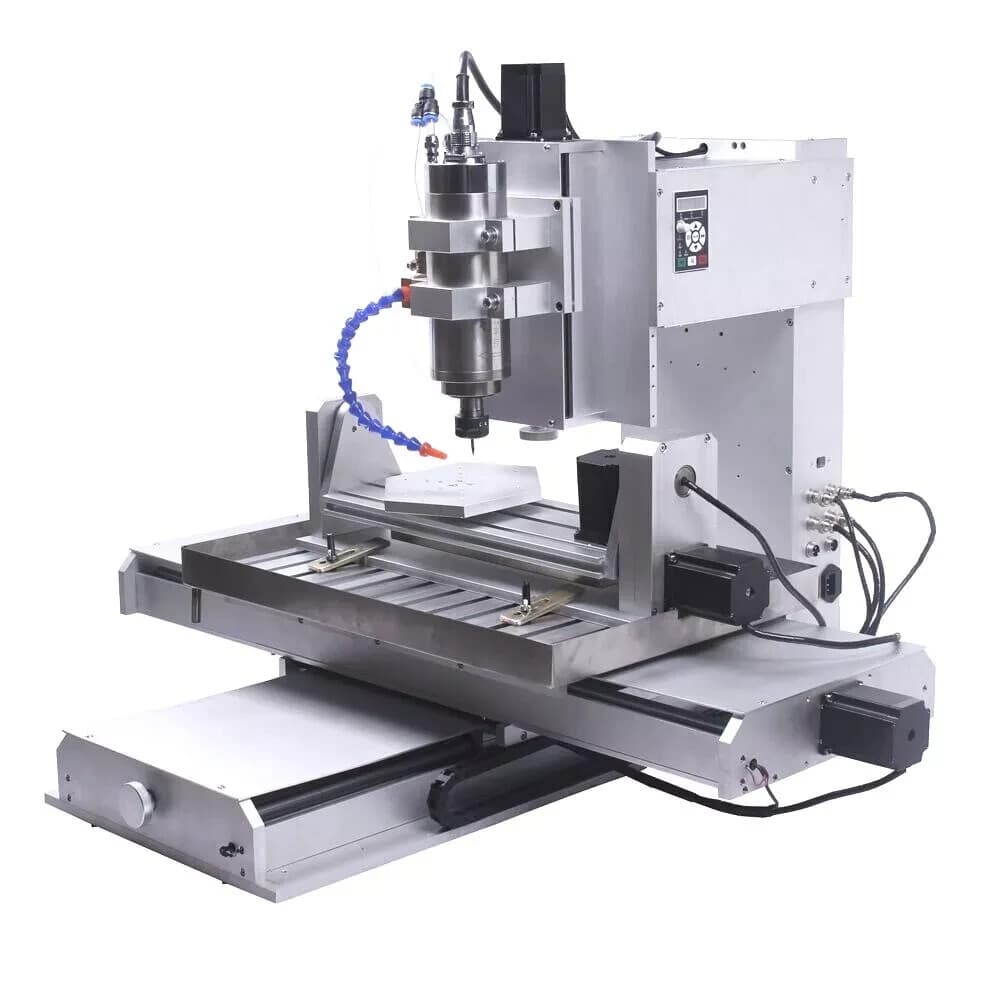

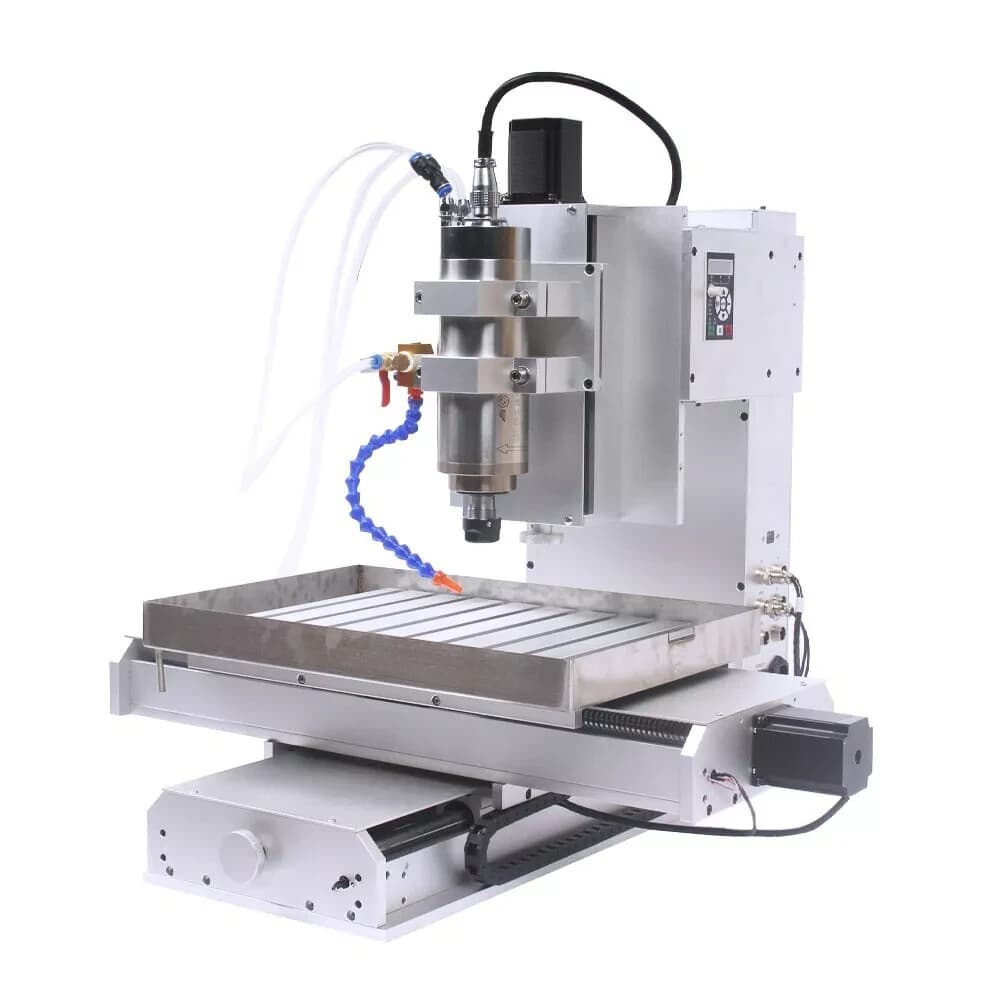

5Axis USB Mach3 6040 2.2KW Water Spindle Motor CNC Router Engraving Machine 220V
NewRATTM MOTOR✓ In Stock
$3,820.00
Category
Routers
Location
Shanghai, CN
As an eBay Partner, we may be compensated if you make a purchase.
Description
• USB connection for Mach3. • able to do surface engraving and 3D engraving, 4th axis(rotary can be added）. • 2200w Water-Cooling Spindle. Aluminum alloy 6063 and 6061 the unique and dedicated mold extrusion profiles. ).
Technical Specifications
Detailed product specifications and features
Country of OriginChina
Spindle2200W Water cooled
Support SoftwareUSB Mach3
PortUSB port

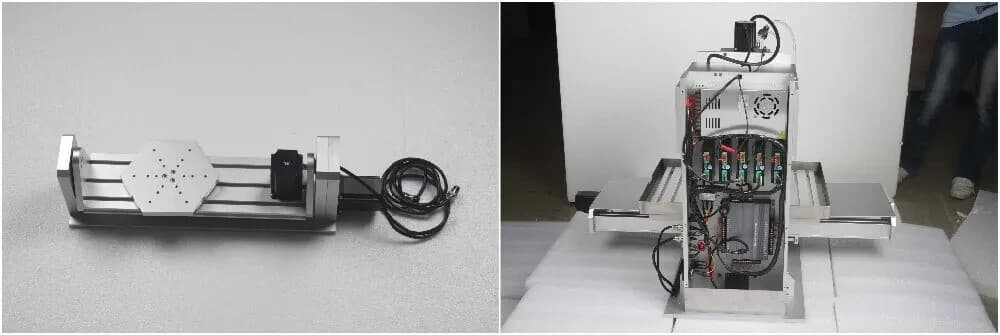

4thAxis size and precision136*116*92mm, 9kg, Height of centre: 33mm, 0.1 degree
ControlCNC
VoltageAC220V or AC 110V
Max. working strokeXYZ= 375x575x68mm
Axis5 Axis
Operating systemWin 10 and below
Repeat accuracy0.05mm
Machine TypeEngraver Machine
Motornema23 two-phase 3A 180N.cm
Spindle motor colletER20
5th axis working travel155(X)mm*155(Y)mm*105(Z) 360 degree 30-90 degree suggested
Revolution Speed3000~24000rpm/min
Positioning accurcay0.05mm
Spindle precisionradial beat accuracy 0.03 mm

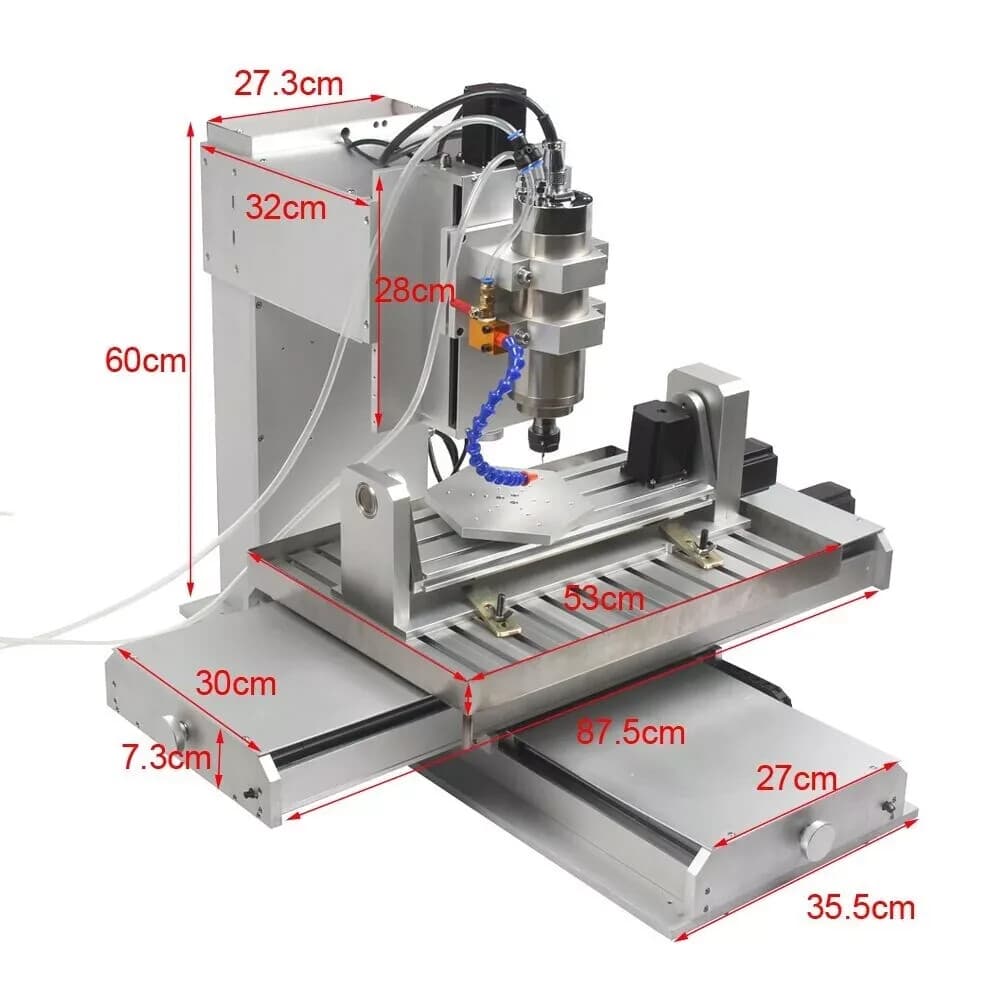

Dimensions855(L)mm*875(W)mm*600(H)mm
BrandRATTM MOTOR
TypeDesktop CNC Router
Model5 Axis 6040Z-2200W-USB
acceptable material thickness≤145mm
Effective working travel583(X)mm*420(Y)mm*150(Z)mm

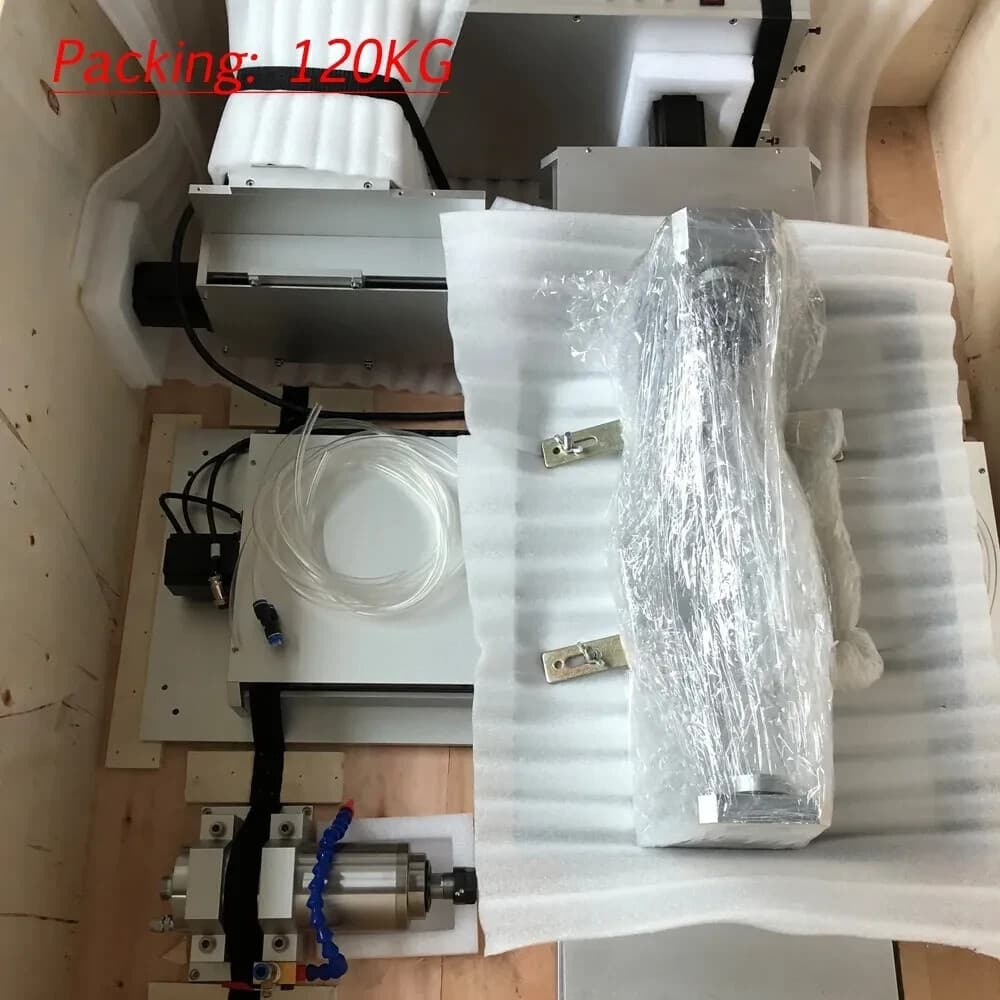

Net Weight120kgs
Spindle motor2200W water cooling spindle, 24000RPM
UPC713721466757
