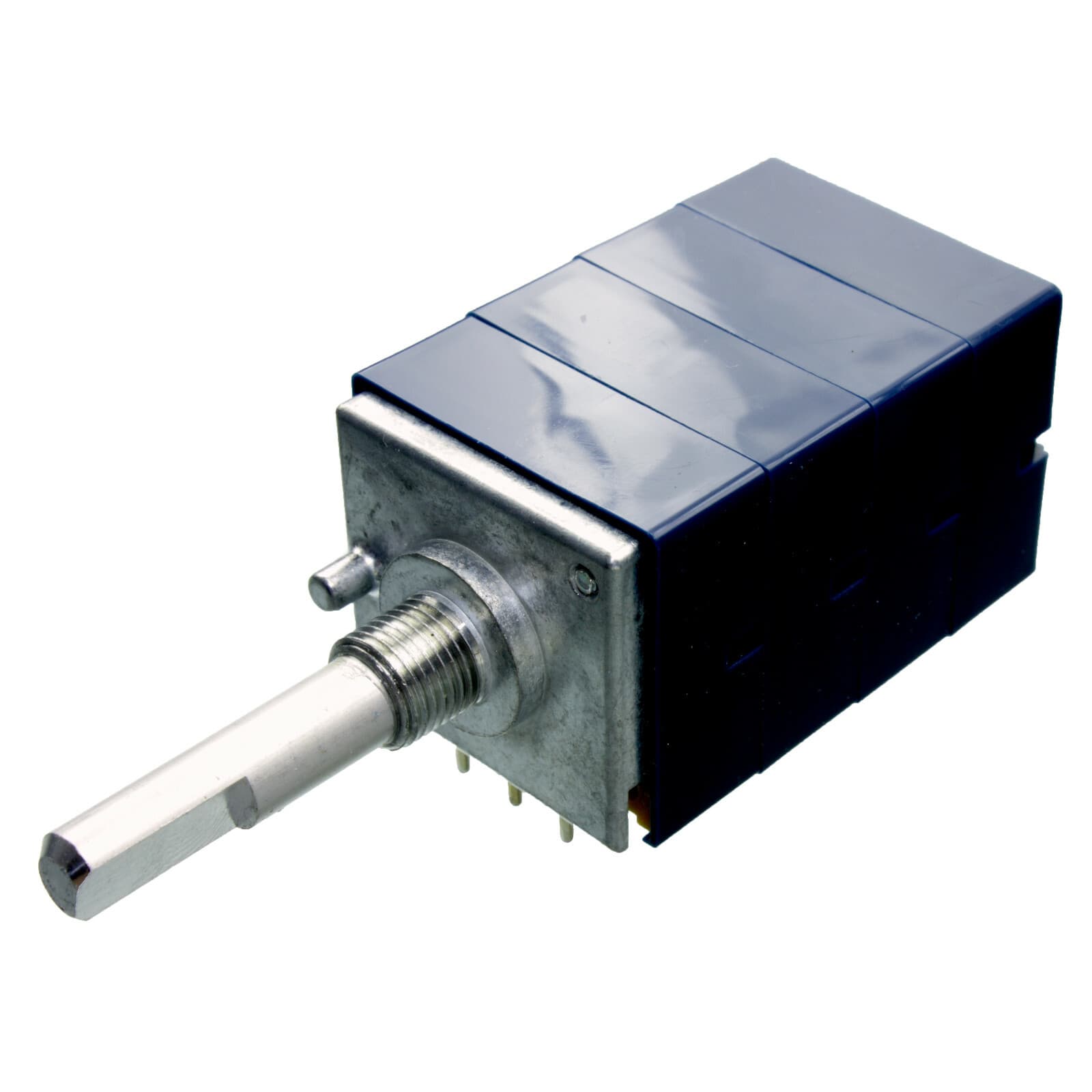

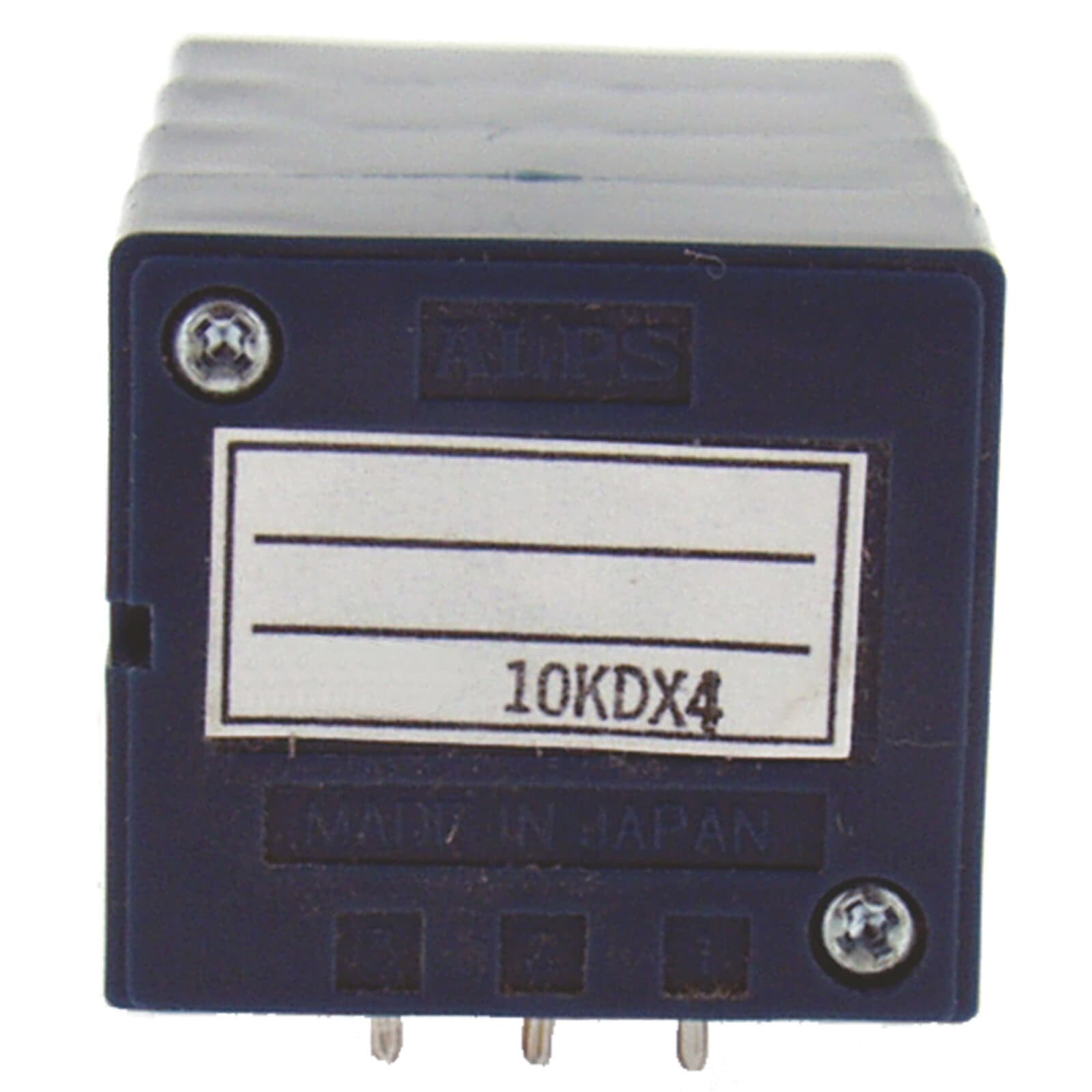

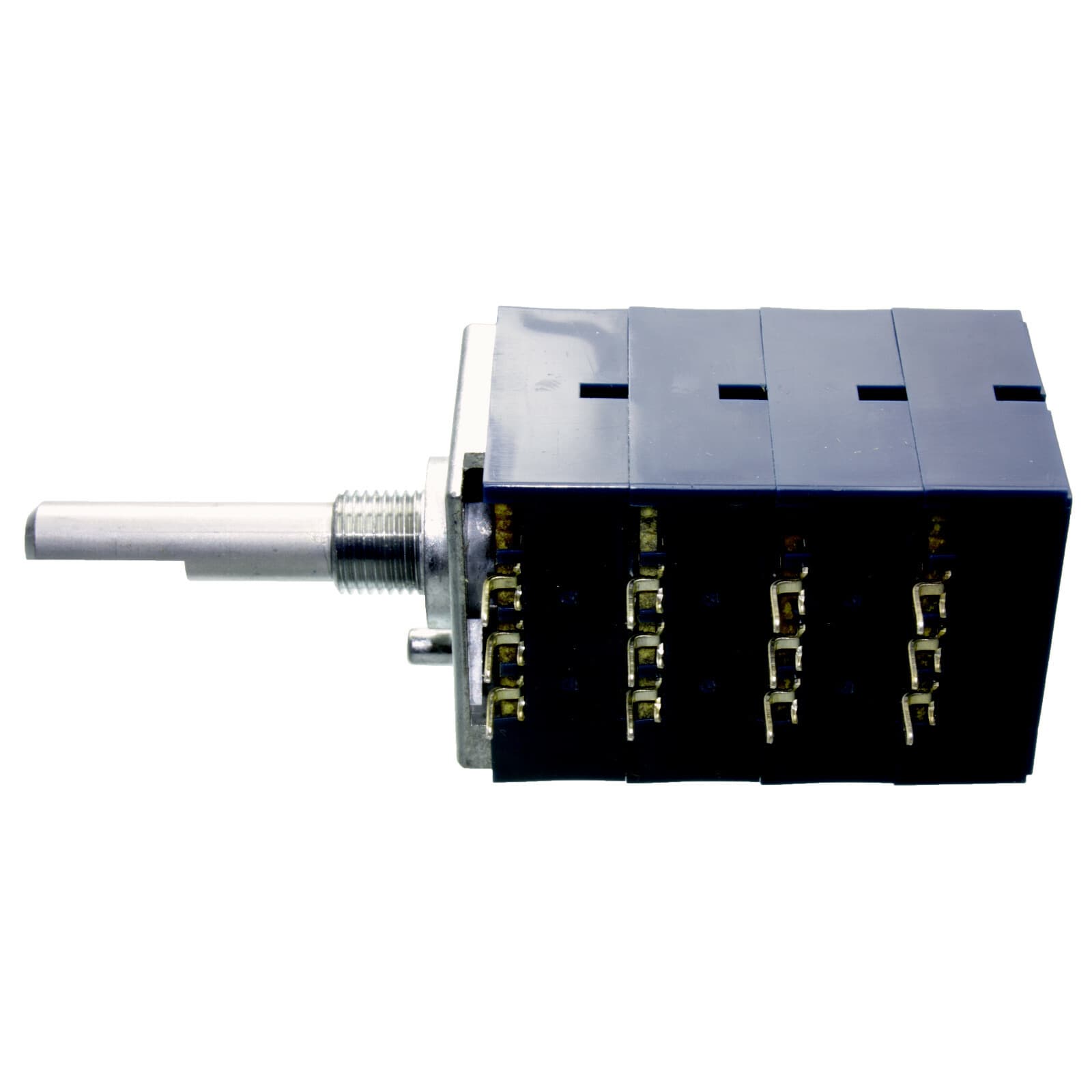

ALPS 10K quad-unit 4-gang Potentiometer log volume audio taper pot RK27 RK27114
As an eBay Partner, we may be compensated if you make a purchase.
Description

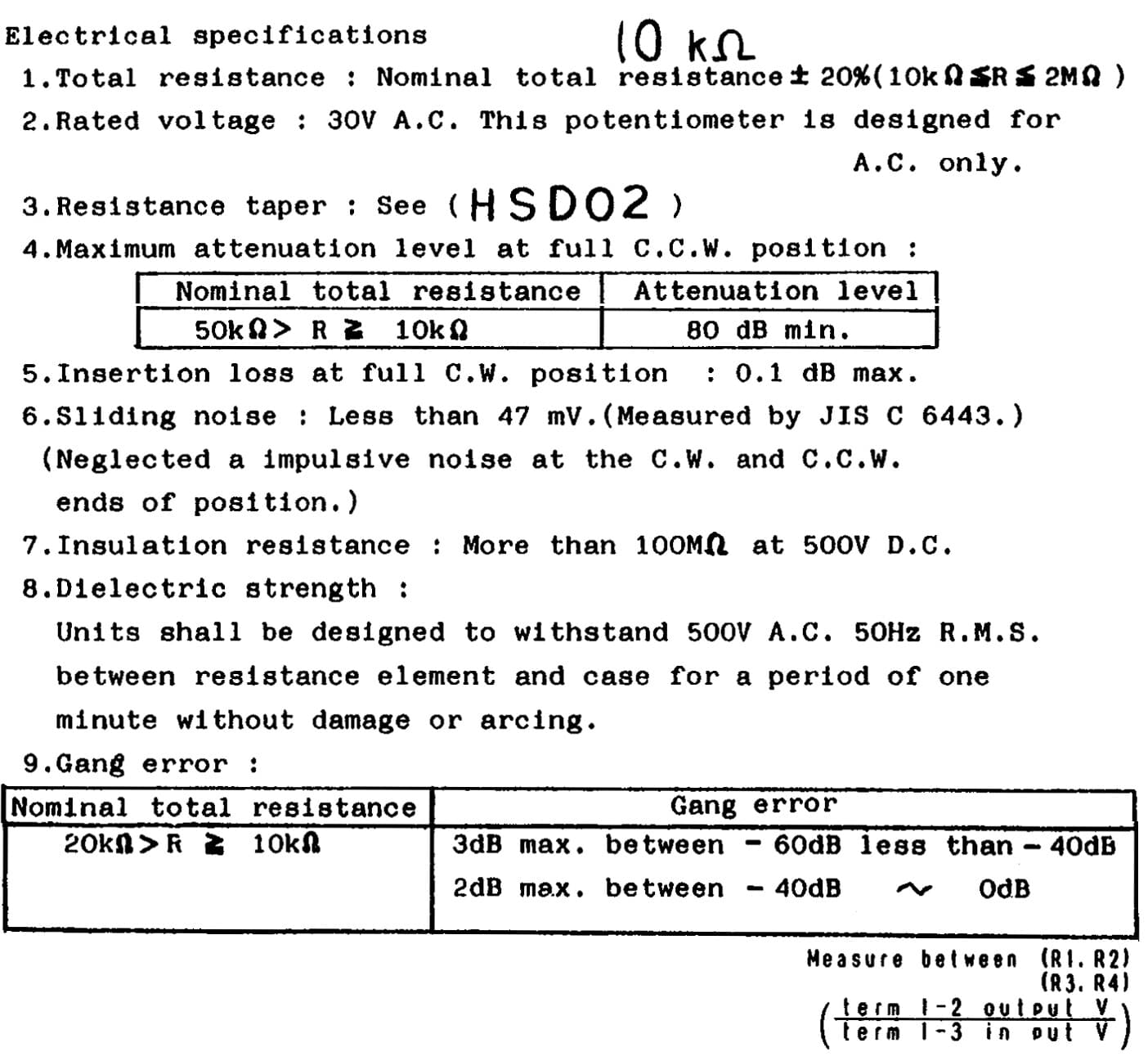

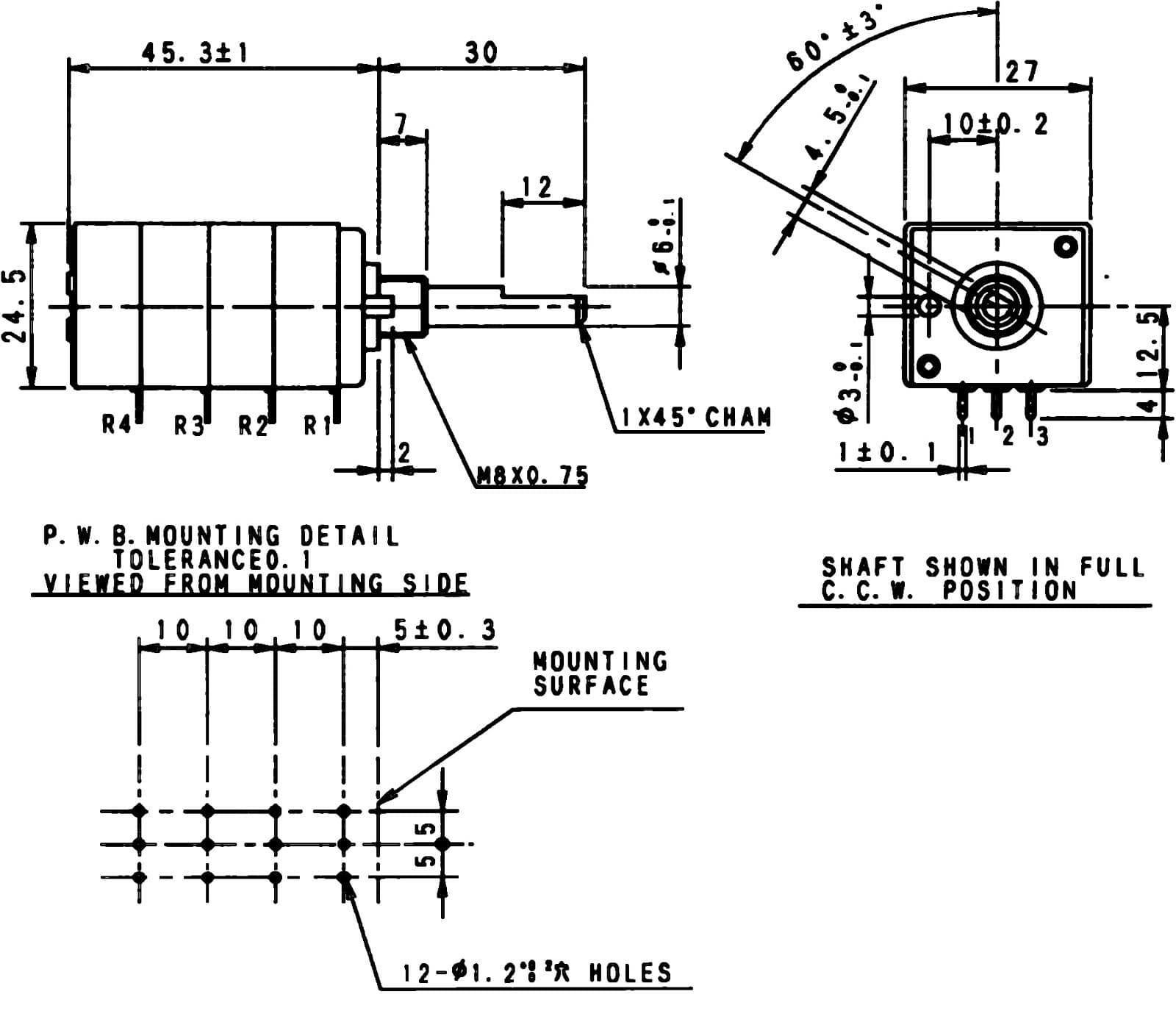

ALPS Alpine RK27114 "Blue Velvet" 10K ohm logarithmic audio taper 4-gang 4 channels High-Grade/High-End Audio potentiometer - - Manufacturer ALPS Alpine Japan - MaxOperatTemp 70 °C - Rated Voltage 30 V/AC - MinOperatTemp -10°C - Part number RK27114A0A01 - Total resistance 10K ohm - Resistance characteristic logarithmic (D) - RoHS compliant Yes - Number of resistors elements Quad-unit - Dimensions (WxDxH) 45.3mm x 27mm x 24.5mm - Center Detent Without - Tolerance ±20% - Insulation Resistance More than 100M Ohm at 500V DC - Operating life 15.000 cycles - Gang error 3 dB max.at -60dB less than -40dB, 2 dB max. -40 ~ - Attentuation 80dB min. - Length of the shaft 30mm - Maximum opertating voltage 30V AC - Total rational angel 300° ± 3 ° - Thread type M8 x 0.
Technical Specifications
Detailed product specifications and features
