Description

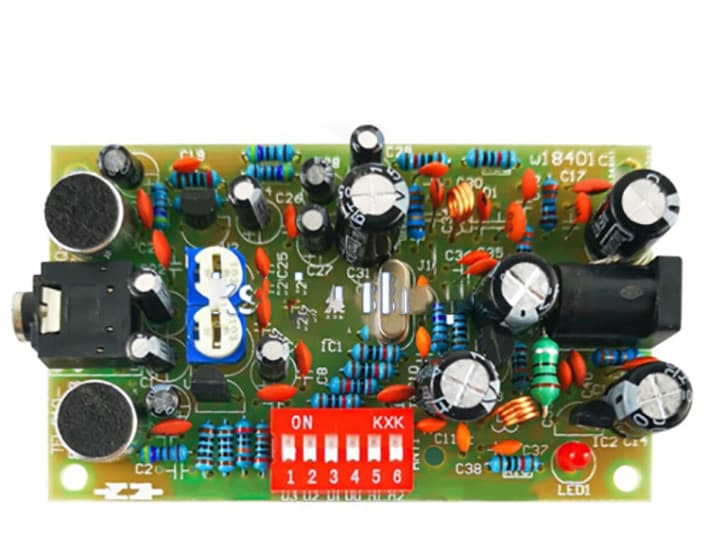

This circuit is the core of BH1417F phase-locked loop FM stereo application-specific integrated circuit. Part due to the high frequency oscillation frequency synthesis circuit is adopted, so the oscillation frequency is very stable, and can easily change the transmission frequency, and it sets up the pre-emphasis circuit, limiting circuit and low-pass filter can significantly improve the sound quality, its total harmonic distortion is 0.3%, the RF output level is 100 db.
