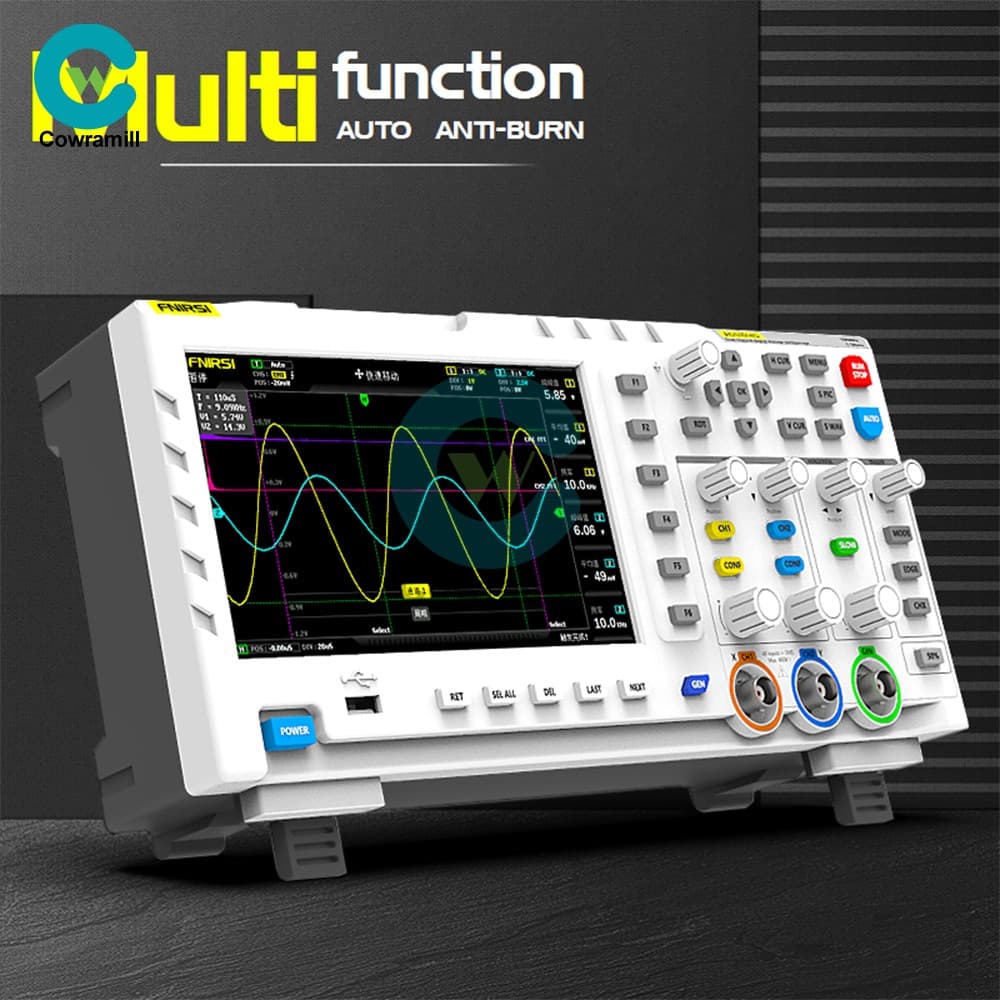

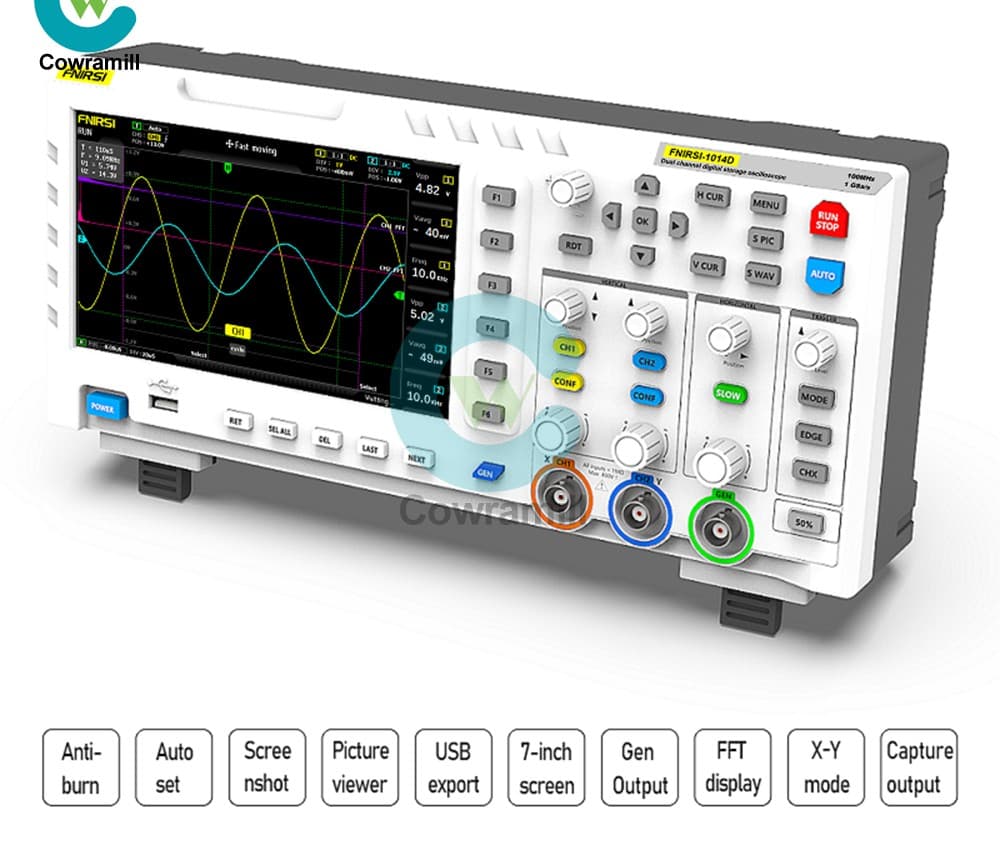

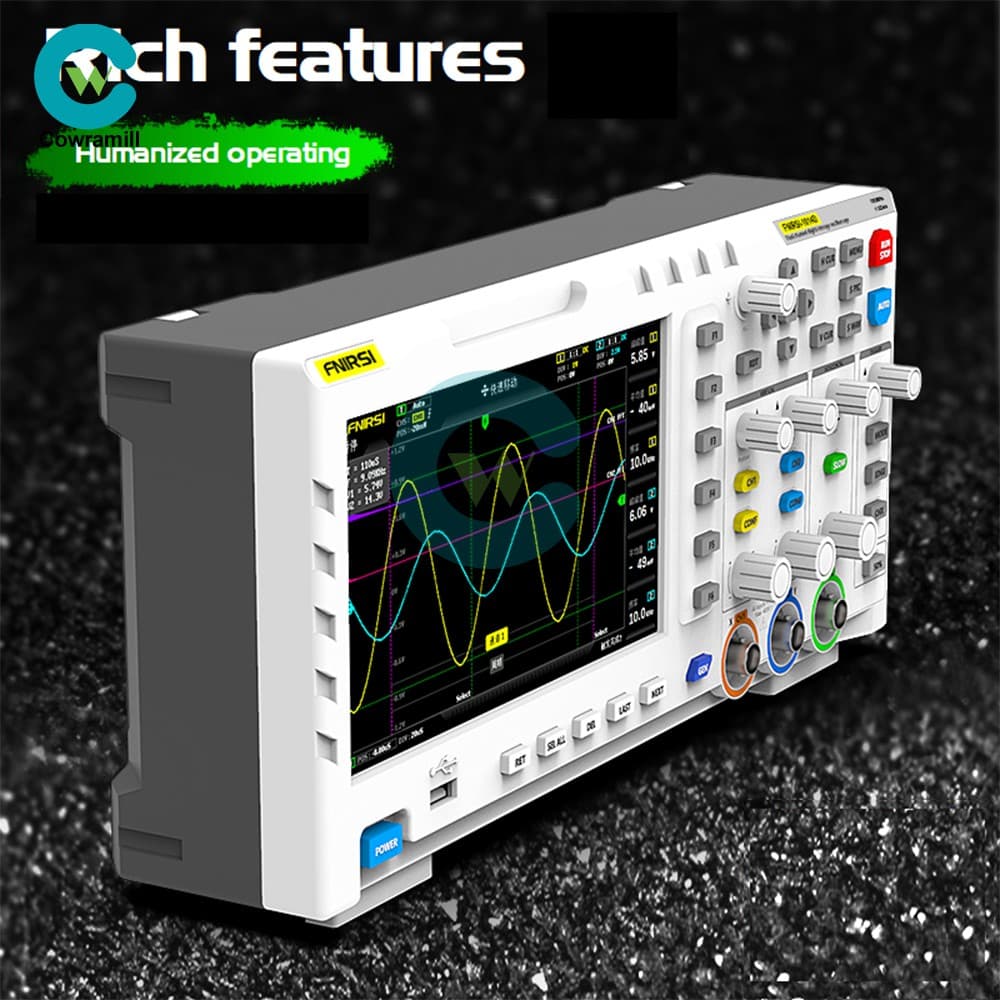

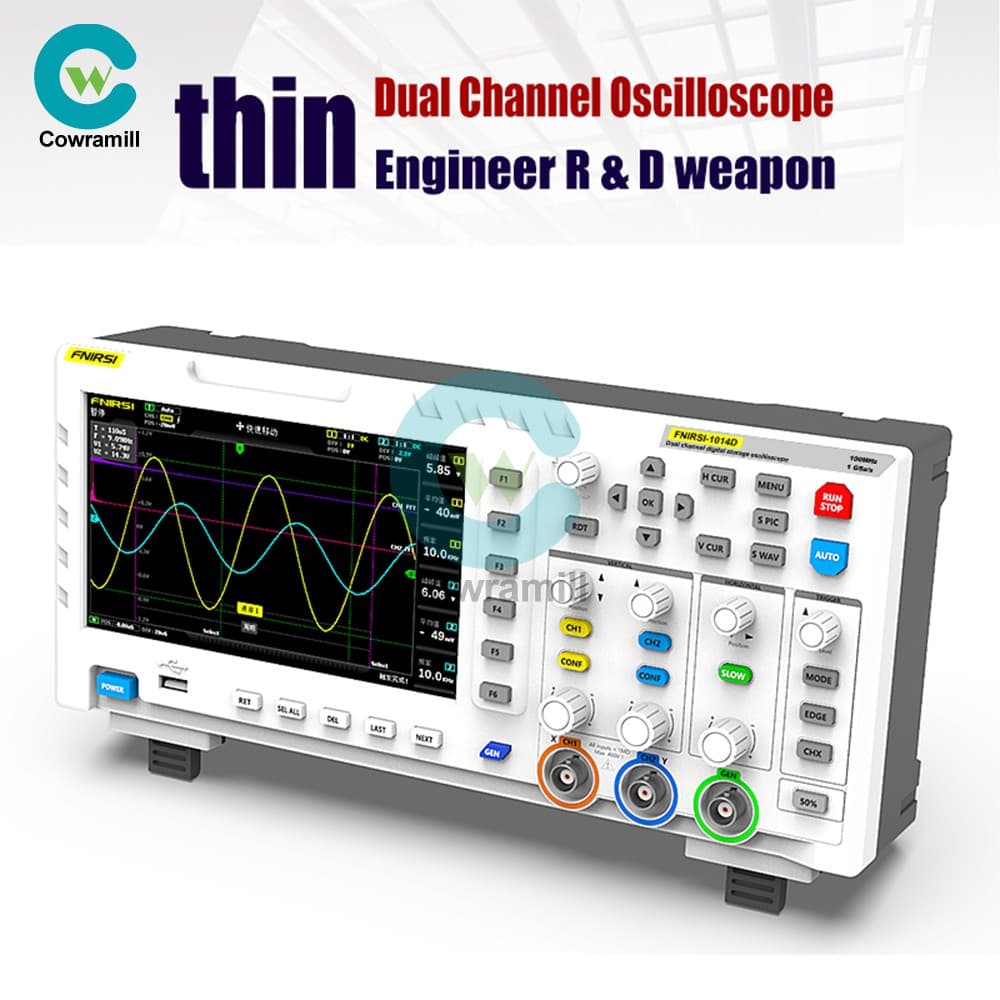

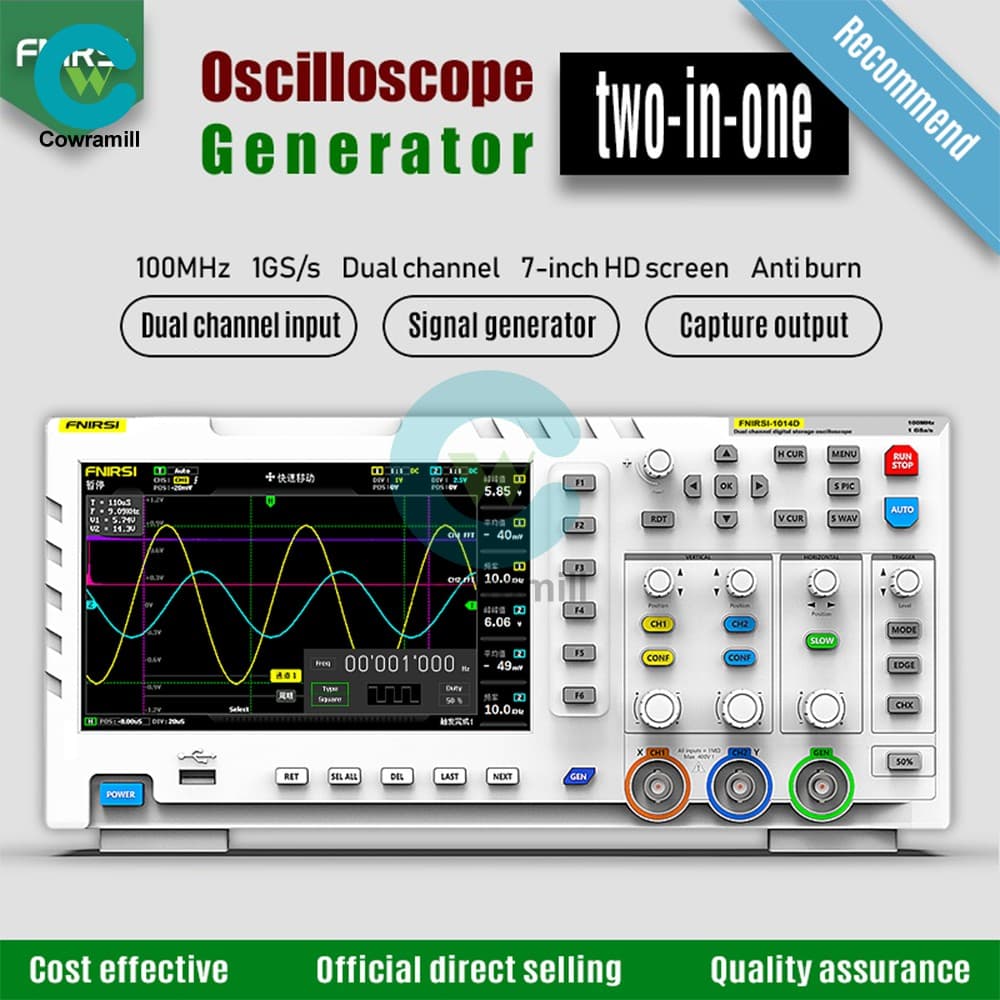

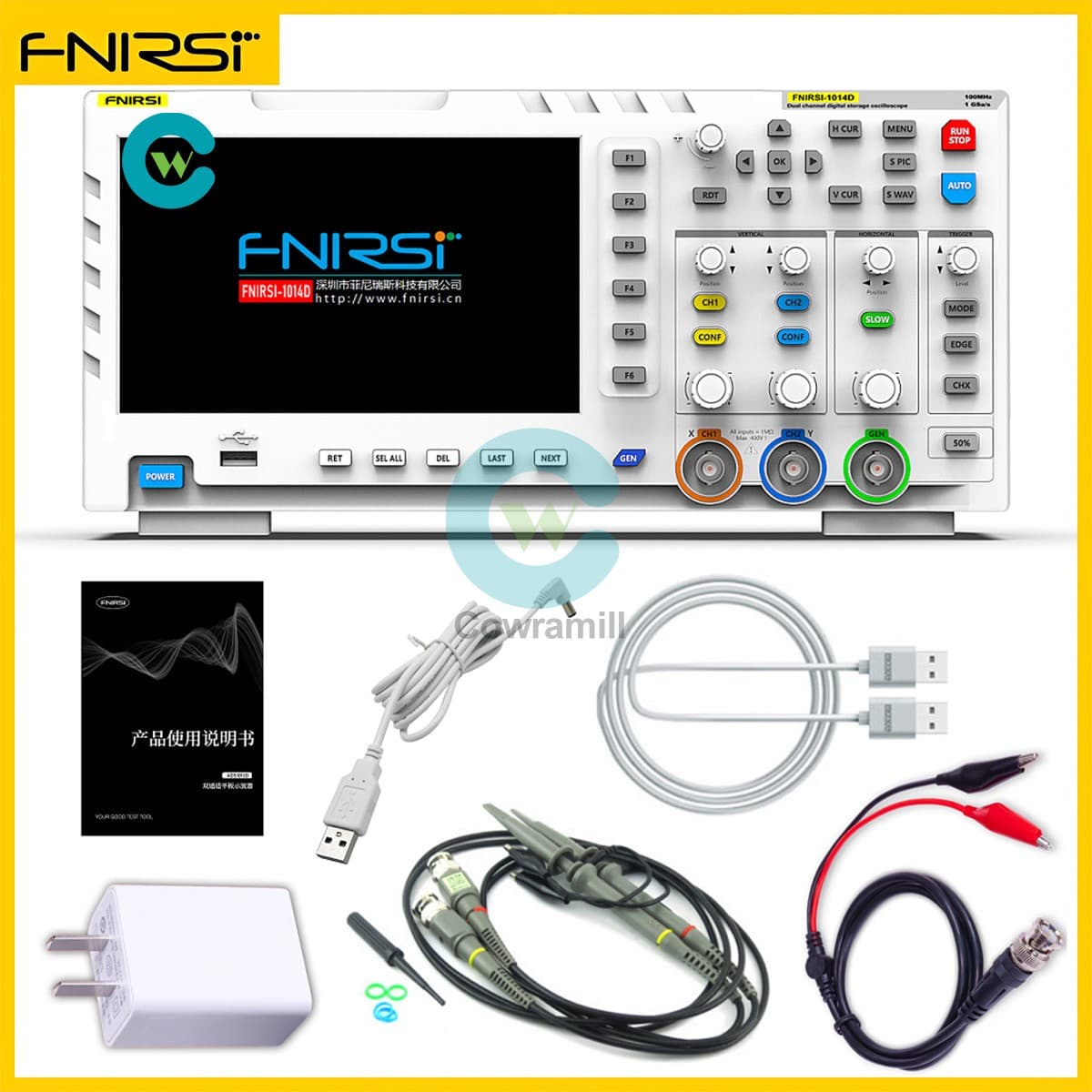

FNIRSI 1014D 7inch LCD 2 Channel Signal Generator Digital Storage Oscilloscope
NewFNIRSI✓ In Stock
$170.99
Category
Oscilloscopes & Vectorscopes
Location
, US
As an eBay Partner, we may be compensated if you make a purchase.
Description
The FNIRSI-1014D is a dual-function oscilloscope and signal generator introduced by FNIRSI. This cost-effective dual-channel benchtop oscilloscope is ideal for maintenance and R&D industries. Equipped with a USB port for computer connectivity, enabling sharing of captured images for secondary analysis.
Technical Specifications
Detailed product specifications and features
BrandFNIRSI
Number of Channels2 channels
FeaturesWith Probe
MarkeMarkenlos
Trigger ModeSingle, Normal, Auto
ADC precision8bits
Analog band width100MHz
Vertical sensitivity50 mV/div ~ 500 V/div
Input resistance1MΩ
Coupling modeAC/Direct Current
Trigger edgeRising edge/Falling edgeExternal..
Extension portsUSB picture export
Horizontal time base range50S/div ~ 10nS/div
Maximum test voltage40 V (1X probe), 400 V (10X probe)
