SCHEMATIC ONLY AM/CW Ham Radio Transmitter 80/40 Meter Bands Heising Modulation
NewUnbranded✓ In Stock
$24.00
Category
Ham Radio Transmitters
Location
Grand Junction, US
As an eBay Partner, we may be compensated if you make a purchase.
Description

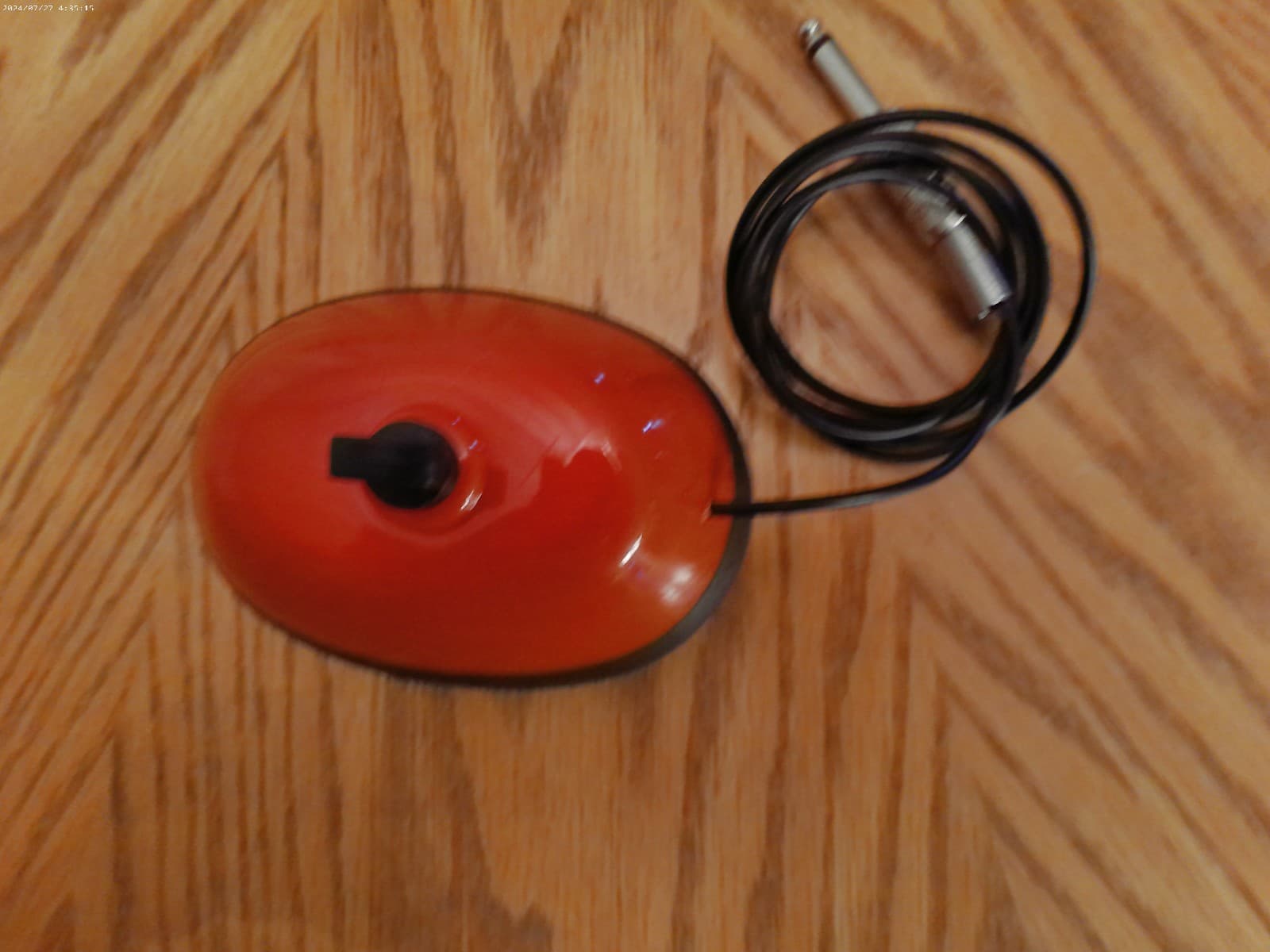

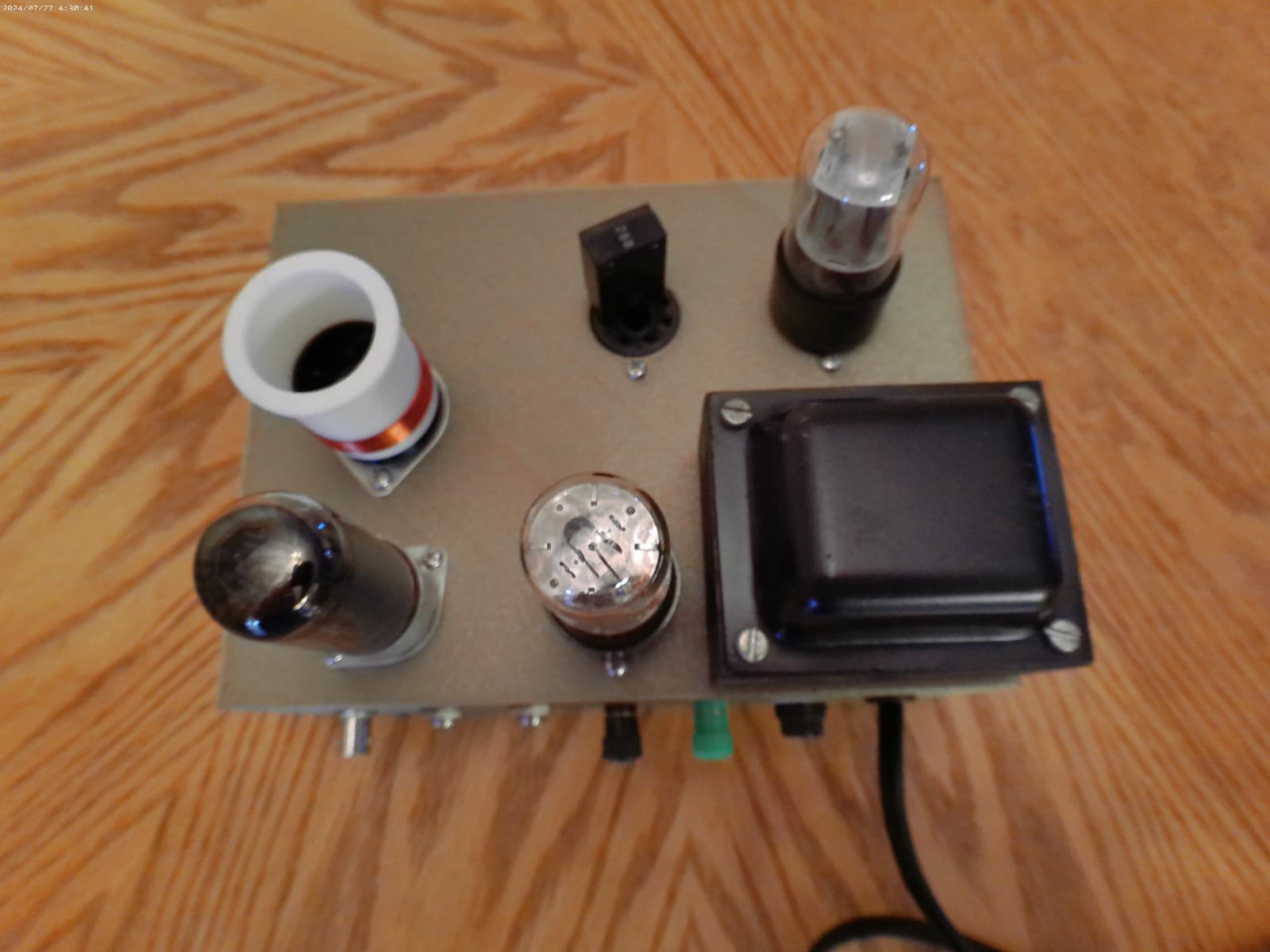

In am mode, this transmitter employs Heising modulation, using a high impedance, crystal mic input to a 6SL7 dual triode, driving a 6V6, which then modulates the 6AG7/7AD7 RF output tube. As with any ham radio transmitter using vacuum tubes, this circuit can be quite lethal if handled without proper respect and safety precautions.
