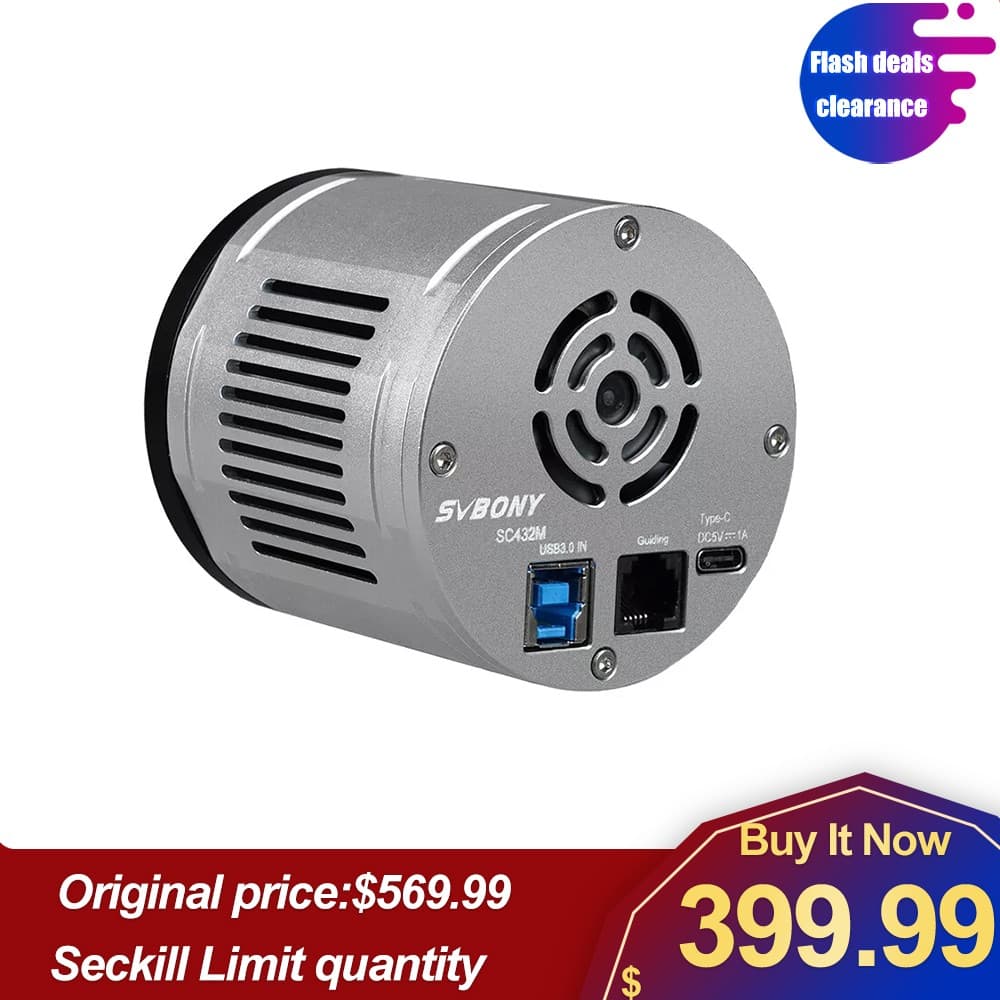

SVBONY SC432M Monochrome Planetary Camera 1.77MP Global Shutter IMX432 CMOS

SVBONY SC432M Monochrome Planetary Camera 1.77MP Global Shutter IMX432 CMOS

NewSVBONY✓ In Stock
$399.99
Category
Telescope Eyepieces & Lenses
Location
, US

As an eBay Partner, we may be compensated if you make a purchase.

Description

SC432M uses global shutter technology; with pixels reaching 9um; which makes its full well reach 100Ke; these features make the SC432M camera unique. Global shutter; being a global shutter camera; SC432M telescope camera also features features a 120 high frame rate per second; it’s not only good for solar and lunar imaging; also suitable for you to photograph ISS and other fast-moving objects. This camera pixel is 9μm x 9μm; with its high sensitivity; images with finer colors and subtler details are possible; you can have full trust in its solar imaging performance.

Technical Specifications

Detailed product specifications and features

BrandSVBONY
TypeSolar Camera
MPNF9387A
ModelSC432M
SensorSONY IMX432 Mono CMOS

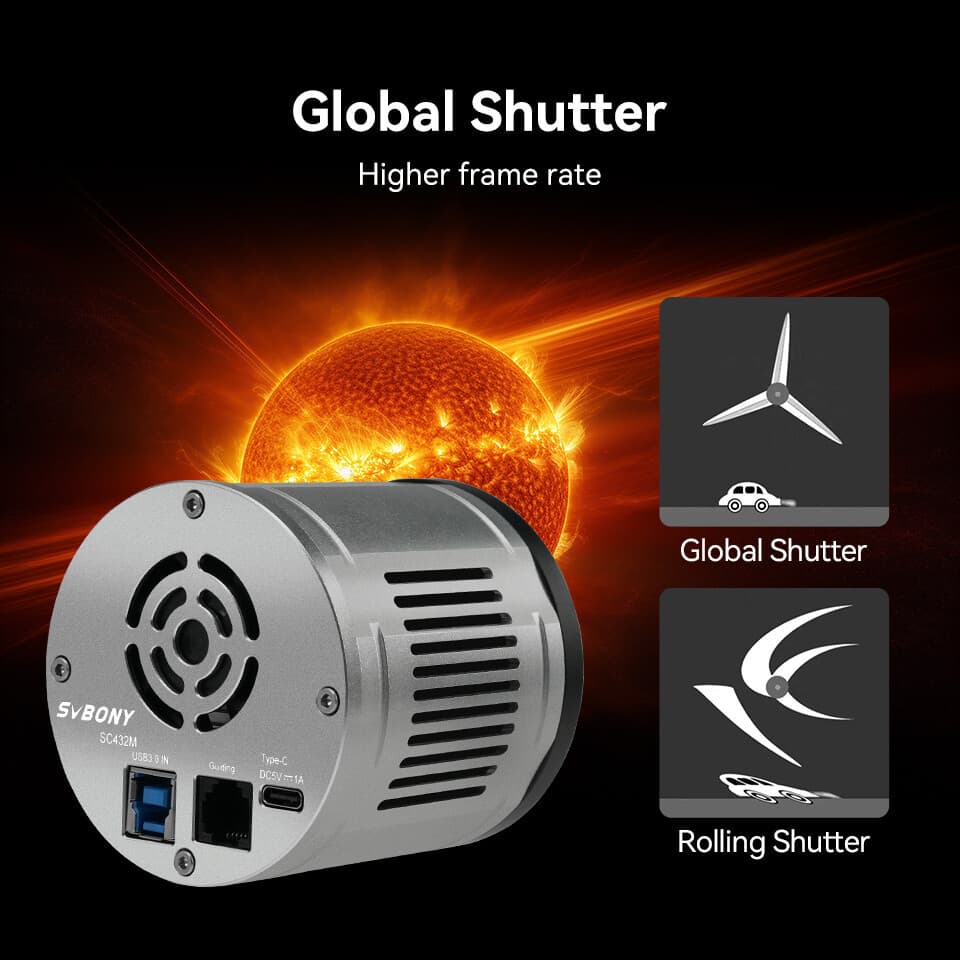

Shutter TypeGlobal Shutter
Frame Rate120FPS

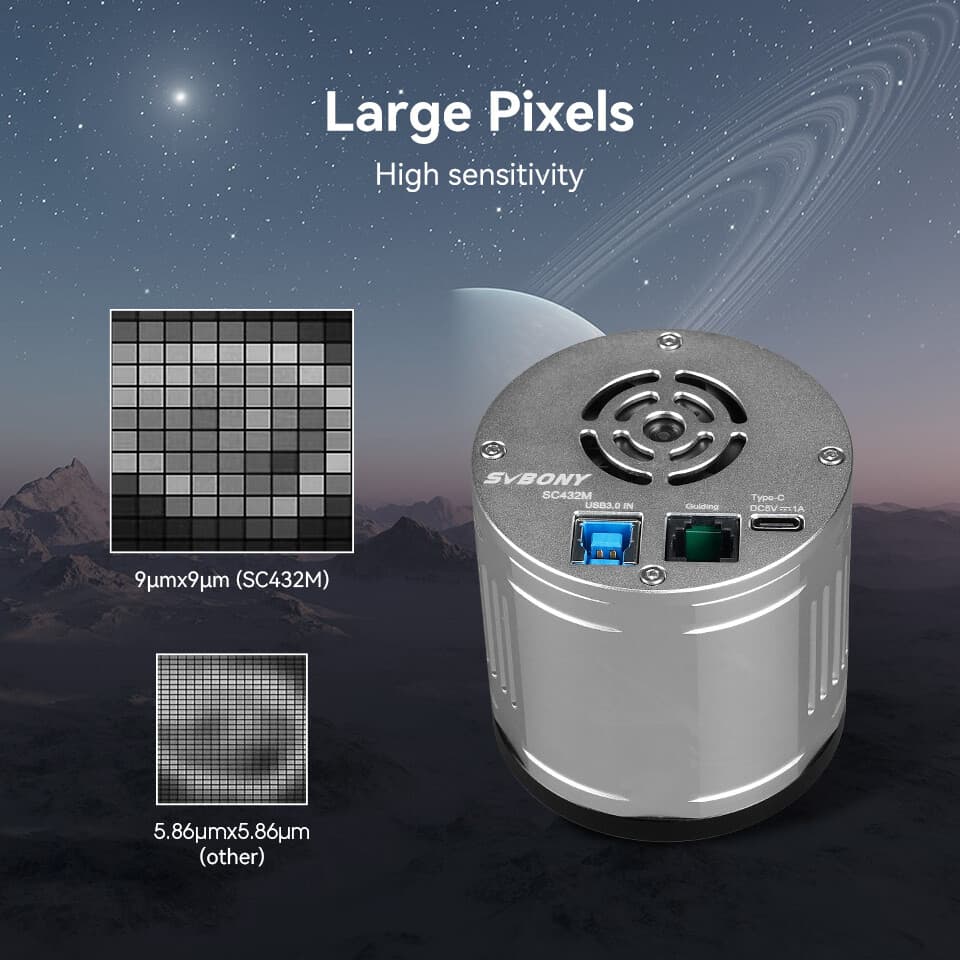

Pixel Size9μm 9μm
Resolution1608×1104
Minimum Back Focal Length7.5mm/12.5mm

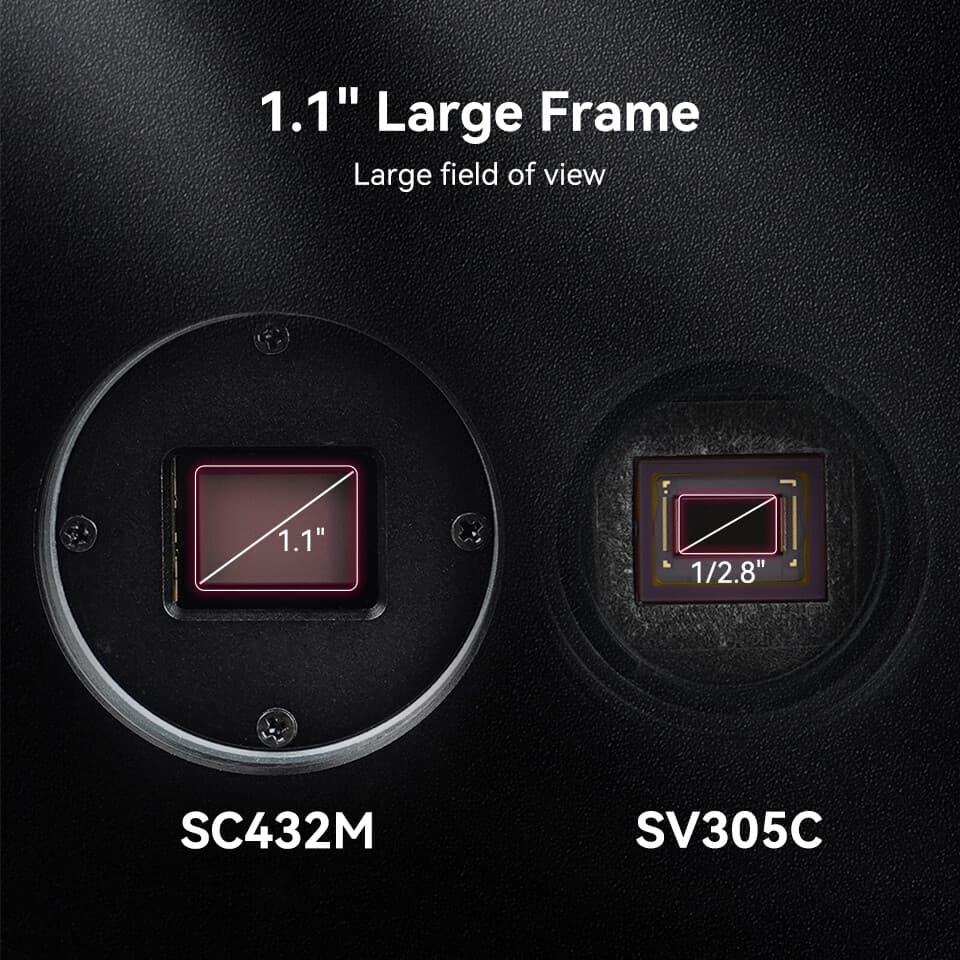

Target Surface Size14.5mm×9.9mm
Diagonal Length17.5mm
CacheDDR3, 256M
Protective GlassAR Anti-reflection coating
QE0.79
Full Well97Ke
Readout Noise2.4e-20.8e
ADC12bit

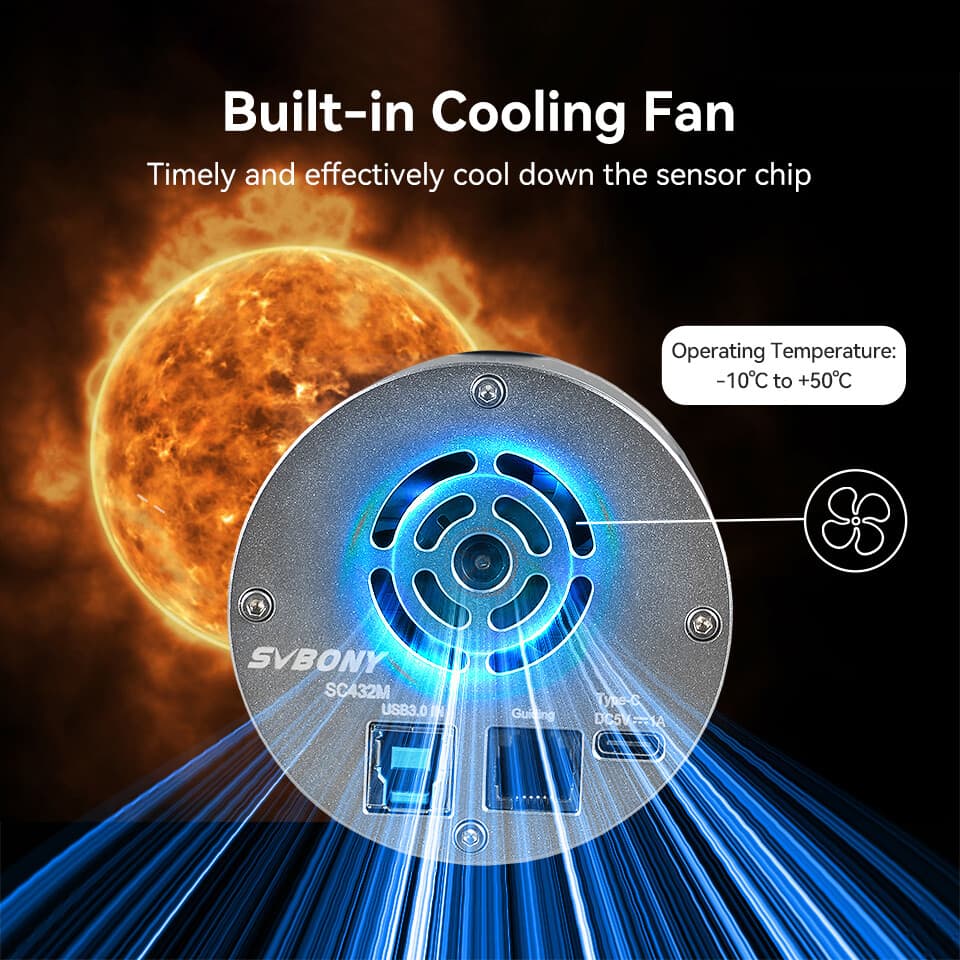

Temperature DisplayAdd temperature sensor, display real-time temperature of the chip
Exposure20μs-2000s
GainAbsolute value
USB Speed0,1,2
Background Level0-255
ROISupport
HCGGain 140,readout noise reduced to 2.4e
BINBIN1, BIN2, BIN3, BIN4
Color SpaceMONO8, MONO16
Output FormatPNG/JPG/AVI/SER/FITS/TIFF/ADV
Image FlipNone/Horizontal/Vertical/Both
Contrast0-100
Gamma0-10
Sharpening0-100
Histogram DisplaySupport
Local DriverSharpcap, Firecapture, AstroDMX Capture
ASCOM DriverSupport
Compatible SystemsWindows OS 7-11/Linux Ubuntu/Mac OS X86, ARM, M1
Camera Body Interface 1M42 thread interface (M420.75)
Camera Body Interface 2USB-C power data port
Camera Body Interface 3ST4 guide star interface
External InterfacesM42 thread to 1.25'' extension tube M28.5 filter thread interface
UPC714559999769
